HDPE Hollow Wall Spiral Pipe Extruding Machine
Hollow Wall Spiral Pipe Extrusion Line Plastic Machinery
Features of HDPE Large Diameter Hollow Wall Winding Pipe
- High Ring Stiffness
- High Brunt Intensity and low weight
- Good creep deformation resistance
- Outer pressure resistance
- Erosion resistance (such as acid, alkali and salt etc.)
- Long life of approximate 50 years. No pollution and so on
Application of HDPE Large Diameter Hollow Wall Winding/Coil Pipe
It has been widely used for sewerage and drainage in city, it will replace the cement pipe, cast iron pipe and other pipes. Its low cost of assembling, easy operation, easy connection and economical construction which makes it wide foreground and market potential.
Features of HDPE Large Diameter Hollow Wall Winding Pipe Extrusion Line

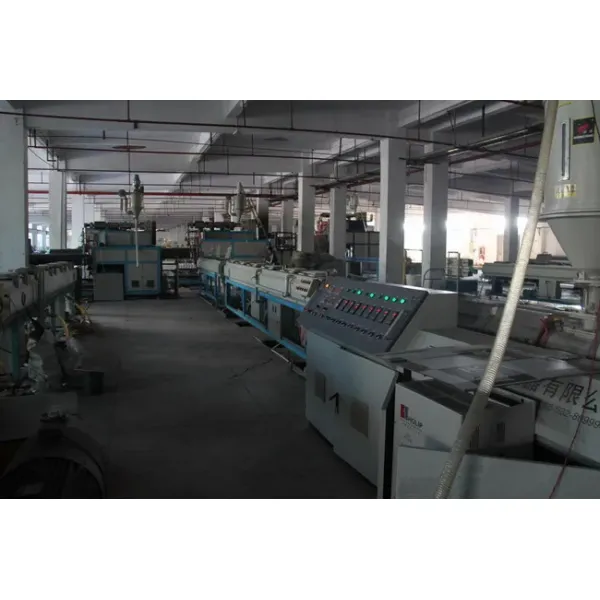

PE Pipe Production Line
The function of extruding PE/PP pipe or PE/PP Square Shaped Pipe (according to your customer requirement). It includes the following equipment:
- SJ series Single Screw Extruder
- Die Head (outer mold and mandrill)
- Calibration Sleeve
- Vacuum Cooling Tank
- Spray Cooling Tank
Forming Machine of HDPE Large Diameter Hollow Wall Winding Pipe
The function of it can produce qualified HDPE Large Diameter Hollow Wall Winding Pipe. It includes as below equipment:
- SJ series Single Screw Extruder
- Die Head
- Spiral forming unit
- Cutting Unit
- Stack Unit
- PLC control system with touch screen
1. HDPE Large Diameter Hollow Wall Winding Pipe Production Line designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank, 2nd single screw extruder for melting glue material, spiral forming unit, cutting unit and stack unit.

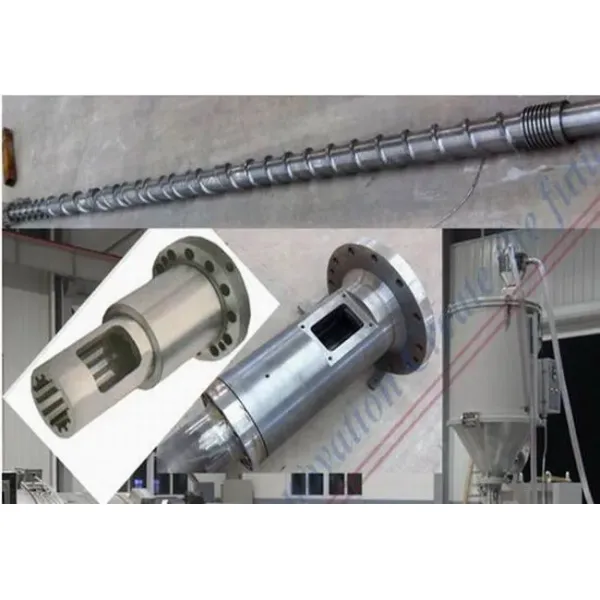

2. 1st single screw extruder for square shaped pipe and 2nd single screw extruder for melting glue material: Extrusion theory for low energy consumption and low temperature plastication compliant with material characteristic (heavier molecular weight), Unique screw design of distance-changing and separation of solid material and melting material, Unique design with slotting barrel ensures large increasing of extrusion capacity. Special design of high mix-melting ensures through low temperature plastication.
3. Spiral forming unit: Adopts advanced multi-axes transmission box with feature of high transmission force and stable running performance. Unique design of composite die-head, rotational molding after combined feed, and two sets of extruder extrude PE for winding pipe, High quality of winding pipe produced by adopting the unique winding process for pipe forming, The glue extruder can be moved in up and down, left and right direction. PLC computer control system with touch screen interface can realize automatic and reliable operation.
4. Cutting part: Saw cutting with desired length. PLC computer control system with touch screen interface can realize automatic and reliable operation.
5. PLC computer control system with touch screen: With super high speed and large storage capacity, Multi control points: Forming pipe extrusion, melting PE adhesive extrusion, winding and cutting process can be auto-tail controlled synchronously, Separately controlling two extruder and winding unit in tandem with two touch screens.
Technical Specifications
| Model |
Pipe Diameter (mm) |
Extruder |
Speed of forming |
Max. output |
Installed Power |
Dimension |
| SKRG-1200 |
Ø400-Ø1200 |
SJ-65(50)X30 |
1-12m/h |
320kg/h |
230KW |
26X18X5 |
| SKRG-1600 |
Ø800-Ø1600 |
SJ-80(50)X30 |
1-6m/h |
500kg/h |
310KW |
27X18X5 |
| SKRG-2200 |
Ø1000-Ø2200 |
SJ-90(65)X30 |
0.5-5m/h |
650kg/h |
380KW |
28X19X5 |
| SKRG-3000 |
Ø1600-Ø3000 |
SJ-90(65)X30 |
0.3-3m/h |
800kg/h |
390KW |
48X26X6 |
